CMP Valiant Cleats

Overview

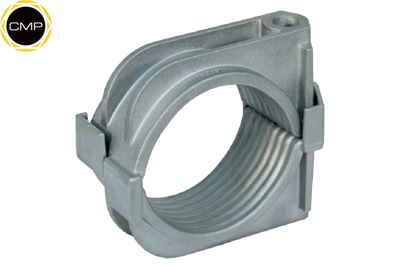

The CMP Valiant One Bolt Aluminium single cable cleat is a metallic cleat which has been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ (IEC 61914).

It ensures the retention and securing of single cables, without damaging or deforming the cable. The cable cleat is manufactured from high pressure die cast aluminium (LM20) making it suitable for both indoor and outdoor applications. Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. The cable cleat has an M10 clearance hole for securing it to a mounting surface.

• Third party certification to IEC 61914
• Available in high pressure die cast aluminium
• Sunlight (UV) resistant
• Operating temperature -60°C to +150°C
• Can be double stacked
• Excellent axial & lateral load retention
• Single bolt fixing design
